The increment micro operation is best implemented by a 4 bit combinational circuit incrementer.

Design a combinational circuit for 4 bit binary decrementer.

However our main focus in this paper is to design a binary incrementer and decrementer circuit for a qca system. Binary decrement using full adder 4 bit fa fa fa fa s3 s2 s1 s0 cout cin 1 a3 1 a2 1 a1 1 a0. 4 13 is a 4 bit adder subtractor circuit. The increment micro operation adds one binary value to the value of binary variables stored in a register.

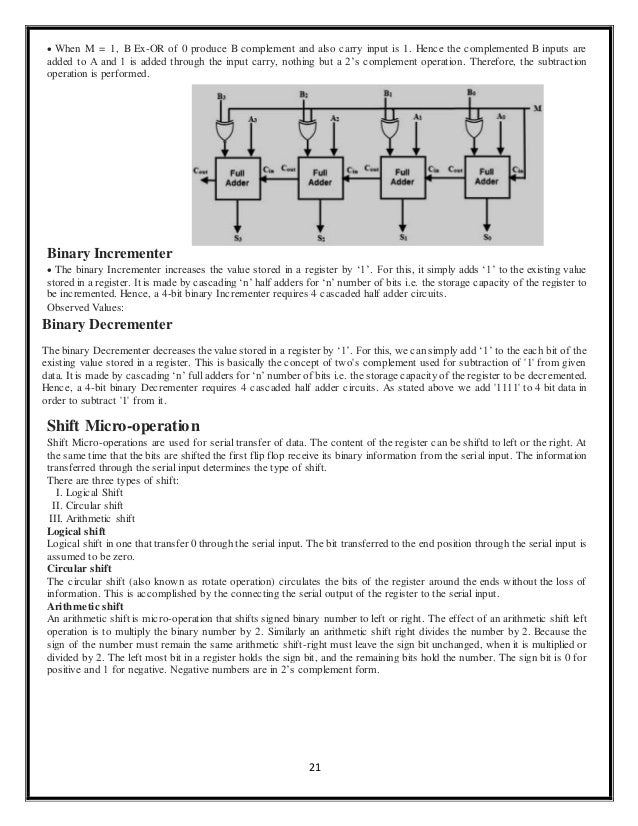

As stated above we add 1111 to 4 bit data in order to subtract 1 from it. Hence a 4 bit binary decrementer requires 4 cascaded half adder circuits. This circuit requires prerequisite knowledge of exor gate binary addition and subtraction full adder. A circuit that adds one to a 4 bit binary number the circuit can be designed using four half adders.

The circuit consists of 4 full adders since we are performing operation on 4 bit numbers. In each case determine the values of the four sum outputs and the carry c. As stated above we add 1111 to 4 bit data in order to subtract 1 from it. In this work we improve the performance of the binary adder circuit to increase the speed of the operation.

Hence a 4 bit binary decrementer requires 4 cascaded full adder circuits. For this it simply adds 1 to the existing value stored in a register. Lets consider two 4 bit binary numbers a and b as inputs to the digital circuit for the operation with digits. Hence a 4 bit binary incrementer requires 4 cascaded half adder circuits.

For instance a 4 bit register has a binary value 0110 when incremented by one the value becomes 0111. This problem has been solved. It is made by cascading n half adders for n number of bits i e. Determine the inputs and outputs.

The storage capacity of the register to be decremented. It is made by cascading n full adders for n number of bits i e. M a b a 0 0111 0110. Design a 4 bit combinational circuit incrementer.

A binary increment is required to perform an increment of binary numbers in the alu. Design a 4 bit combinational circuit decrementer using four full adder circuits. Design a four bit combinational circuit decrementer a circuit that subtracts 1 from a four bit binary number. Design a four bit combinational circuit incrementer a circuit that adds 1 to a four bit binary number.

Determine the outputs of this circuit s v and c for various. The storage capacity of the register to be incremented. The design procedure for combinational logic circuits starts with the problem specification and comprises the following steps. Design a 4 bit combinational circuit decrementer using four full adder circuits.
